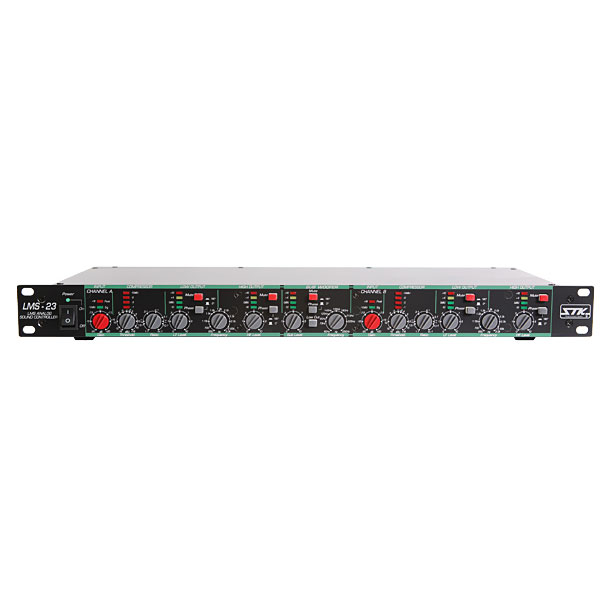

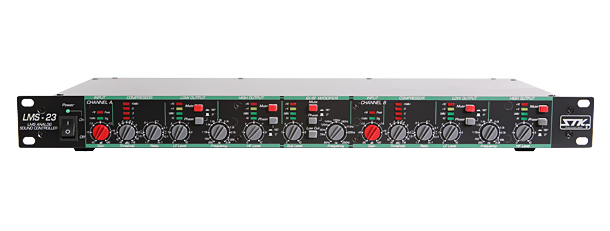

| Model |
LMS-23 |
| Inputs |
|
| Connectors |
Female XLR (inputs), Male XLR(input through) |
| Type |
Electronically balanced/RF filtered |
| Impedance |
Balanced ＞20k ohm. Unbalanced ＞10k ohm |
| Max Input Level |
＞+19dBu balanced or unbalanced |
| CMRR |
|
| Outputs |
|
| Connectors |
Male XLR (pin 2 hot) |
| Type |
Impedance-balanaced/unbalanced, RF filtered |
| Impedance |
Balanced 100 ohm, unbalanced 50 ohm |
| Max Output Level |
＞+21dBu balanced/unbalanced into 2k or greater |
| System performance |
|
| Gain Control Range |
-20 dBu to + 20 dBu |
| Frequency Response |
20Hz to 20kHz, +/-0.5dB from target response |
| Signal-to-Noise |
Ref: +4 dBu, 22 kHz measurement bandwidth |
| Stereo or mono parallel Mode |
＞94dB (SF Output) |
| ＞93dB (LF Output ) |
| ＞92dB (HF Output) |
| Dynamic Range |
＞114 dB, unweighted, any output |
| THD + Noise |
＜0.03% at +4 dBu, 1 kHz |
| ＜0.05% at +20 dBu, 1 kHz |
| Interchannel Crosstalk |
＜-80 dB, 20 Hz to 20 kHz |
| Compressor/Limiter |
|
| Threshold Level Range |
5:'-42 dBu to '+18dBu |
| Ratio |
1:1- ∞ : 1 |
| Processor Type |
Analog engine dynamic processor |
| |
|
| Equalization |
Fixed 4 band (factory setting) |
| Phase Shift |
0 or 180º (SF output) |
| 0 or 180º (LF output) |
| Crossover Frequencies |
|
| Sub Woofer |
63 to 250Hz |
| Low/High |
630 to 5KHz |
| Filter type |
Linkwitz-Riley, 24 dB/octave, state-variable |
| |
|
| Function Switches |
|
| Mute Controls |
Activates signal mute on LF and HF output |
| Activates signal mute on SF output. |
| Low Cut Filters |
Activates 15 Hz Butterworth, 12 dB/octave high-pass filter (SF output) |
| Rear Panel |
|
| Mode Setect |
Selects stereo 2-way or parallel mono 2-way operation |
| Ground Lift |
Disconnects from AC ground |
| Indicators |
|
| Stereo Operation |
LED OFF |
| Parallel Mono Operation |
Yellow LED Turn on |
| Sig |
Green LED turn on from '- 10dBu input level. |
| Gain Reduction Meter |
4-LED bar graph (all Red) at 0, 3, 6, and 10dB |
| |
|
| Power Supply |
|
| Operating Voltage |
100 VAC 50/60 Hz; 120 VAC 60 Hz ; 230 VAC 50 Hz |
| Power consumption |
15W |
| Main Connection |
IEC Receptacle |
| Physical |
|
| Dimensions: WXHXD |
483X44X176mm |
| Shipping/CBM |
0.0255 |
| Weight |
2.5 kg |
| Shipping Weight |
3.9 kg |
