| Model |

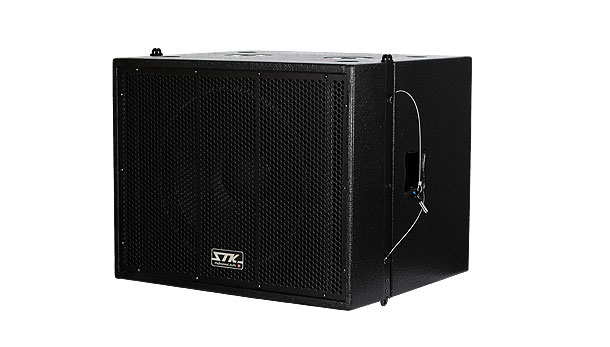

LMS-6015P |
| Configuration |
Sub Woofer : Line Array |
| Transducer |
one SK15600 15" |
| Frequency Response (± 3dB)¹ |
40Hz - 200Hz |
| Frequency Range (-10dB)¹ |
35Hz - 500Hz |
| Nominal Impedance |
8Ω |
| Continuous Power Capacity |
600W/2400W PEAK |
| Sensitivity (㏈ SPL, 1 W at 1 m) |
99 dB |
| Recommended Power |
1200W |
| Maximum Output,Continuous/Peak(dB |
126.80dB /132.80dB |
| SPL at 1 m) |
|
| Enclosure Type |
Ported + Vented subwoofer rectangular type |
| Enclosure Material |
2 x 12 mm birch plywood |
| Finish |
Available in black or White(Option), paintable |
| Grille |
Perforated, powder coated 16AWG steel, |
| Connectors For Amplifiers |
2× Neutrik Speakon in parallel |
| Pins : 1+/1- SUB |
| Pins : 2+/2- NC |
| Attachment Points |
Integral, non-adjustable.straight array only |
| Dimensions |
|
| Weight (Net/Shipping) & Volume |
|
| Available Accessories |
B6015LMH: Array Frame/ |
| P62LMIFF, P62LMIRR : Fly Grid plate/L09LM: Locking Pin |
| B62LMU: ground-stacked "U" frame/ |
| SPM-35130 speaker pole |
